Interface: Commercial Vehicles - CRQ Preclearance Transponder Readers

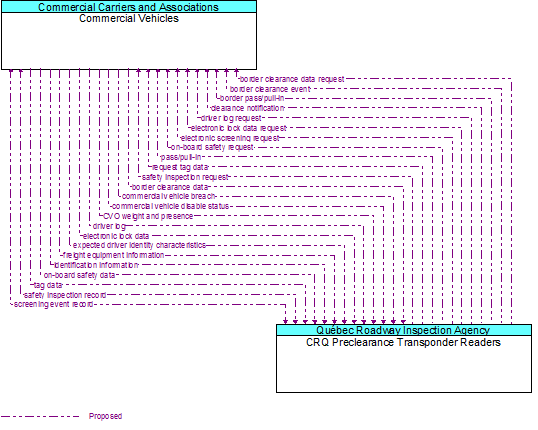

Commercial Vehicles to CRQ Preclearance Transponder Readers Interface Diagram

Architecture Flow Definitions

border clearance data  (Proposed)  Applicable ITS Standards

Trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.

border clearance data request  (Proposed)  Applicable ITS Standards

Request for trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.

border clearance event  (Proposed)  Applicable ITS Standards

Reports clearance event data regarding action taken at border, including acceptance or override of system decision, and date/time stamp

border pass/pull-in  (Proposed)

Command to commercial vehicle to pull into or bypass border inspection station

clearance notification  (Proposed)

Notification that cargo has been cleared through customs.

commercial vehicle breach  (Proposed)

Information about a breach or tamper event on a Commercial Vehicle or its attached freight equipment which includes identity, type of breach, location, and time.

commercial vehicle disable status  (Proposed)

This flow provides the status of the disable flag in the commercial vehicle.

CVO weight and presence  (Proposed)

Physical attribute of commercial vehicle that can be measured (for example, weight, number of axels, axel spacing, etc.).

driver log  (Proposed)  Applicable ITS Standards

A daily log showing hours in service for the current driver.

driver log request  (Proposed)  Applicable ITS Standards

Request for driver log data.

electronic lock data  (Proposed)  Applicable ITS Standards

Notification to roadside (via transponder) of the presence and status of electronic cargo locks.

electronic lock data request  (Proposed)  Applicable ITS Standards

Request from roadside for data regarding presence and status of electronic cargo locks.

electronic screening request  (Proposed)  Applicable ITS Standards

Request for identification data to support electronic screening.

expected driver identity characteristics  (Proposed)

Driver identification information e.g. encrypted PIN codes issued to drivers, encrypted driver biometric parameters.

freight equipment information  (Proposed)  Applicable ITS Standards

Container, trailer, or chassis information regarding identity, type, location, brake wear data, mileage, seal #, seal type, door open/close status, chassis bare/covered status, tethered / untethered status, Bill of Lading, and sensor status.

identification information  (Proposed)

The physical characteristics of a commercial vehicle that can be used to determine a vehicle's identity, such as a license plate number, USDOT number, ICC number, bar code, etc.

on-board safety data  (Proposed)  Applicable ITS Standards

Safety data measured by on-board sensors. Includes information about the vehicle, vehicle components, cargo, and driver.

on-board safety request  (Proposed)  Applicable ITS Standards

Request for on-board vehicle safety data by the roadside equipment.

pass/pull-in  (Proposed)  Applicable ITS Standards

Command to commercial vehicle to pull into or bypass inspection station.

request tag data  (Proposed)  Applicable ITS Standards

Request for tag information including credit identity, stored value card cash, etc.

safety inspection record  (Proposed)  Applicable ITS Standards

Record containing results of commercial vehicle safety inspection.

safety inspection request  (Proposed)  Applicable ITS Standards

Request for safety inspection record.

screening event record  (Proposed)  Applicable ITS Standards

Results of CVO electronic screening activity.

tag data  (Proposed)  Applicable ITS Standards

Unique tag ID and related vehicle information for payment for services and for the purpose of access control, guidance, and safety monitoring.
