Interface: Commercial Vehicles - US CBP Border Field Equipment

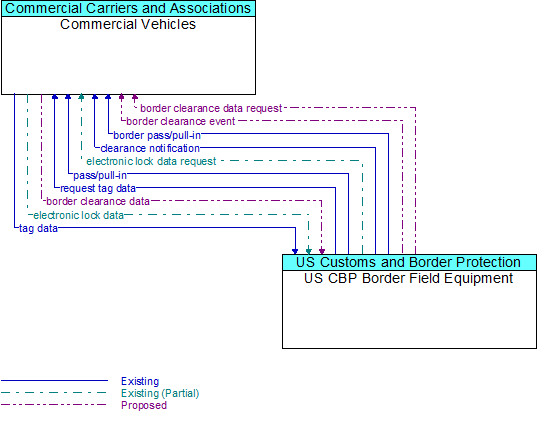

Commercial Vehicles to US CBP Border Field Equipment Interface Diagram

Architecture Flow Definitions

border clearance data  (Proposed)  Applicable ITS Standards

Trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.

border clearance data request  (Proposed)  Applicable ITS Standards

Request for trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.

border clearance event  (Proposed)  Applicable ITS Standards

Reports clearance event data regarding action taken at border, including acceptance or override of system decision, and date/time stamp

border pass/pull-in  (Existing)  Applicable ITS Standards

Command to commercial vehicle to pull into or bypass border inspection station

clearance notification  (Existing)  Applicable ITS Standards

Notification that cargo has been cleared through customs.

electronic lock data  (Existing (Partial))  Applicable ITS Standards

Notification to roadside (via transponder) of the presence and status of electronic cargo locks.

electronic lock data request  (Existing (Partial))  Applicable ITS Standards

Request from roadside for data regarding presence and status of electronic cargo locks.

pass/pull-in  (Existing)  Applicable ITS Standards

Command to commercial vehicle to pull into or bypass inspection station.

request tag data  (Existing)  Applicable ITS Standards

Request for tag information including credit identity, stored value card cash, etc.

tag data  (Existing)  Applicable ITS Standards

Unique tag ID and related vehicle information for payment for services and for the purpose of access control, guidance, and safety monitoring.
