Interface: Commercial Vehicles - Fleet and Freight Management Systems

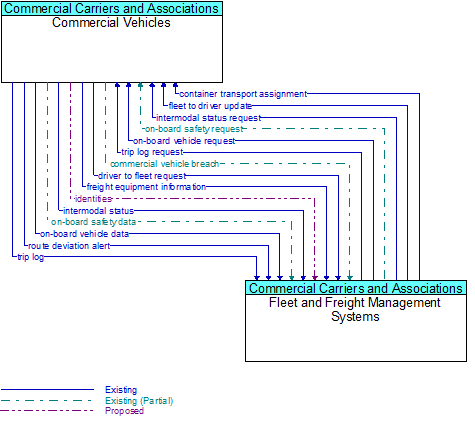

Commercial Vehicles to Fleet and Freight Management Systems Interface Diagram

Architecture Flow Definitions

commercial vehicle breach  (Existing (Partial))  Applicable ITS Standards

Information about a breach or tamper event on a Commercial Vehicle or its attached freight equipment which includes identity, type of breach, location, and time.

container transport assignment  (Existing)

Instructions to a commercial vehicle for the transportation of a container.

driver to fleet request  (Existing)  Applicable ITS Standards

Requests from the driver and vehicle for routing, payment, and enrollment information.

fleet to driver update  (Existing)  Applicable ITS Standards

Updated instructions to the driver including dispatch, routing, and special instructions.

freight equipment information  (Existing)  Applicable ITS Standards

Container, trailer, or chassis information regarding identity, type, location, brake wear data, mileage, seal #, seal type, door open/close status, chassis bare/covered status, tethered / untethered status, Bill of Lading, and sensor status.

identities  (Proposed)  Applicable ITS Standards

Identification information for the Commercial Vehicle (e.g., license plate number or USDOT number), Intermodal Freight Equipment (e.g., container, chassis, or trailer identification), and Driver.

intermodal status  (Existing)  Applicable ITS Standards

Information from a commercial vehicle on the status of container and chassis systems that the vehicle is transporting.

intermodal status request  (Existing)

Request from a fleet manager for the status of an intermodal load.

on-board safety data  (Existing (Partial))  Applicable ITS Standards

Safety data measured by on-board sensors. Includes information about the vehicle, vehicle components, cargo, and driver.

on-board safety request  (Existing (Partial))  Applicable ITS Standards

Request for on-board vehicle safety data by the roadside equipment.

on-board vehicle data  (Existing)  Applicable ITS Standards

Information about the commercial vehicle stored on-board (for maintenance purposes, gate access, cargo status, lock status, etc.).

on-board vehicle request  (Existing)  Applicable ITS Standards

Request for on-board vehicle data.

route deviation alert  (Existing)  Applicable ITS Standards

An alert that indicates a deviation from a planned route has been detected. The alert will contain the current Commercial Vehicle location and identity.

trip log  (Existing)  Applicable ITS Standards

Driver's daily log, vehicle location, mileage, and trip activity (includes screening, inspection and border clearance event data as well as fare payments).

trip log request  (Existing)  Applicable ITS Standards

Request for trip log.
