Interface: Traveller Information Device - Municipal Transit TIS

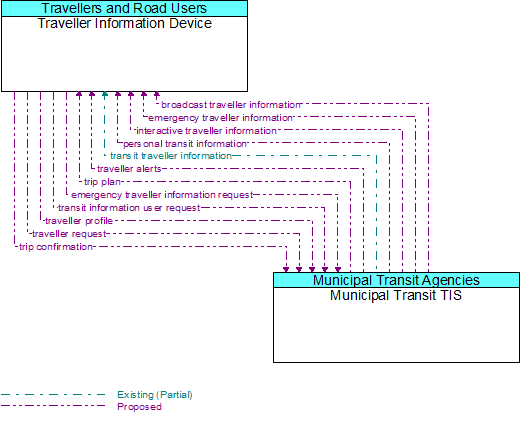

Traveller Information Device to Municipal Transit TIS Interface Diagram

Architecture Flow Definitions

broadcast traveller information  (Proposed)  Applicable ITS Standards

General traveller information that contains traffic and road conditions, link travel times, incidents, advisories, restrictions, transit service information, weather information, parking information, and other related traveller information.

emergency traveller information  (Proposed)

Public notification of an emergency such as a natural or man-made disaster, civil emergency, or child abduction. This flow also includes evacuation information including evacuation instructions, evacuation zones, recommended evacuation times, tailored ev

emergency traveller information request  (Proposed)

Request for alerts, evacuation information, and other emergency information provided to the travelling public.

interactive traveller information  (Proposed)  Applicable ITS Standards

Traveller information provided in response to a traveller request. The provided information includes traffic and road conditions, advisories, incidents, payment information, transit services, parking information, weather information, and other travel-rela

personal transit information  (Proposed)  Applicable ITS Standards

General and personalized transit information for a particular fixed route, flexible route, or paratransit system.

transit information user request  (Proposed)  Applicable ITS Standards

Request for special transit routing, real-time schedule information, and availability information.

transit traveller information  (Existing (Partial))  Applicable ITS Standards

Transit information prepared to support transit users and other travellers. It contains transit schedules, real-time arrival information, fare schedules, alerts and advisories, and general transit service information.

traveller alerts  (Proposed)  Applicable ITS Standards

Traveller information alerts reporting congestion, incidents, adverse road or weather conditions, parking availability, transit service delays or interruptions, and other information that may impact the traveller. Relevant alerts are provided based on tr

traveller profile  (Proposed)  Applicable ITS Standards

Information about a traveller including equipment capabilities, personal preferences, and traveller alert subscriptions.

traveller request  (Proposed)  Applicable ITS Standards

A request for traveller information including traffic, transit, toll, parking, road weather conditions, event, and passenger rail information. The request identifies the type of information, the area of interest, parameters that are used to prioritize or

trip confirmation  (Proposed)  Applicable ITS Standards

Acknowledgement by the driver/traveller of acceptance of a trip plan with associated personal and payment information required to confirm reservations.

trip plan  (Proposed)  Applicable ITS Standards

A travel itinerary identifying a route and associated traveller information and instructions identifying recommended modes and transfer information, ride sharing options, and transit and parking reservation information.
