Interface: CRQ CV Roadside Inspection Facilities - CRQ CV Inspectors

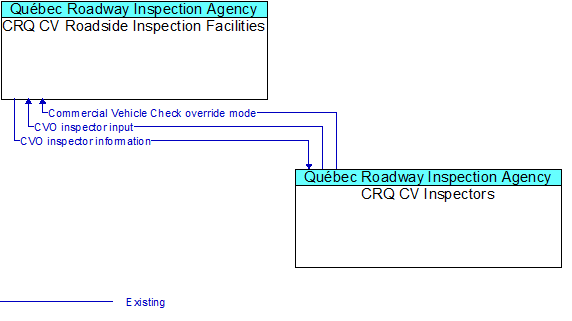

CRQ CV Roadside Inspection Facilities to CRQ CV Inspectors Interface Diagram

Architecture Flow Definitions

Commercial Vehicle Check override mode  (Existing)

This flow represents the tactile or auditory interface with ITS equipment containing the manual override of automated pass/pull-in decisions generated by the Commercial Vehicle Check station.

CVO inspector information  (Existing)

This flow represents the visual or auditory interface with ITS equipment containing credential, safety, and preclearance information and instructions to the commercial vehicle inspector.

CVO inspector input  (Existing)

This flow represents the tactile or auditory interface with ITS equipment containing requests from the commercial vehicle inspector to operate the commercial vehicle inspection station.
