Interface: MTO COMPASS - Municipal Transit Central Systems

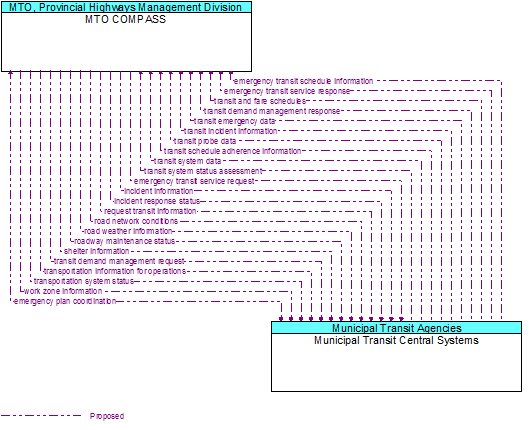

MTO COMPASS to Municipal Transit Central Systems Interface Diagram

Architecture Flow Definitions

emergency plan coordination  (Proposed)  Applicable ITS Standards

Information that supports coordination of emergency management plans, continuity of operations plans, emergency response and recovery plans, evacuation plans, and other emergency plans between agencies. This includes general plans that are coordinated pr

emergency transit schedule information  (Proposed)  Applicable ITS Standards

Information on transit schedule and service changes that adapt the service to better meet needs of responders and the general public in an emergency situation, including special service schedules supporting evacuation.

emergency transit service request  (Proposed)  Applicable ITS Standards

Request to modify transit service and fare schedules to address emergencies, including requests for transit services to evacuate people from and/or deploy response agency personnel to an emergency scene. The request may poll for resource availability or

emergency transit service response  (Proposed)  Applicable ITS Standards

Response indicating changes to transit service, fares, and/or restrictions that will be made and status of transit resources to be deployed to support emergency response and/or evacuation.

incident information  (Proposed)  Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transp

incident response status  (Proposed)  Applicable ITS Standards

Status of the current incident response including a summary of incident status and its impact on the transportation system, traffic management strategies implemented at the site (e.g., closures, diversions, traffic signal control overrides), and current a

request transit information  (Proposed)  Applicable ITS Standards

Request for transit service information and current transit status.

road network conditions  (Proposed)  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate route

road weather information  (Proposed)  Applicable ITS Standards

Road conditions and weather information that are made available by road maintenance operations to other transportation system operators..

roadway maintenance status  (Proposed)  Applicable ITS Standards

Summary of maintenance fleet operations affecting the road network. This includes the status of winter maintenance (snow plow schedule and current status).

shelter information  (Proposed)

Evacuation shelter information including location, hours of operation, special accommodations, and current vacancy/availability information.

transit and fare schedules  (Proposed)  Applicable ITS Standards

Transit service information including routes, schedules, and fare information.

transit demand management request  (Proposed)  Applicable ITS Standards

Request to change the demand for transit facility use through pricing or other mechanisms.

transit demand management response  (Proposed)  Applicable ITS Standards

Response to transit demand management change requests indicating level of compliance with request.

transit emergency data  (Proposed)  Applicable ITS Standards

Initial notification of transit emergency at a transit stop or on transit vehicles and further coordination as additional details become available and the response is coordinated.

transit incident information  (Proposed)  Applicable ITS Standards

Information on transit incidents that impact transit services for public dissemination.

transit probe data  (Proposed)  Applicable ITS Standards

Aggregate probe data derived from tracking transit vehicles. Data collected could include transit vehicle speeds and travel times for a given link or collection of links.

transit schedule adherence information  (Proposed)  Applicable ITS Standards

Dynamic transit schedule adherence and transit vehicle location information.

transit system data  (Proposed)  Applicable ITS Standards

Current transit system operations information indicating current transit routes, the level of service on each route, and the progress of individual vehicles along their routes for use in forecasting demand and estimating current transportation network per

transit system status assessment  (Proposed)  Applicable ITS Standards

Assessment of damage sustained by the public transportation system including location and extent of the damage, current operational status including an estimate of remaining capacity and necessary restrictions, and time frame for repair and recovery.

transportation information for operations  (Proposed)  Applicable ITS Standards

Information on the state of transportation system operations including traffic and road conditions, advisories, incidents, transit service information, weather information, parking information, and other related data.

transportation system status  (Proposed)  Applicable ITS Standards

Current status and condition of transportation infrastructure (e.g., tunnels, bridges, interchanges, TMC offices, maintenance facilities). In case of disaster or major incident, this flow provides an assessment of damage sustained by the surface transpor

work zone information  (Proposed)  Applicable ITS Standards

Summary of maintenance and construction work zone activities affecting the road network including the nature of the maintenance or construction activity, location, impact to the roadway, expected time(s) and duration of impact, anticipated delays, alterna
