Interface: Inter-regional Transit Systems - Inter-regional Transit Vehicles

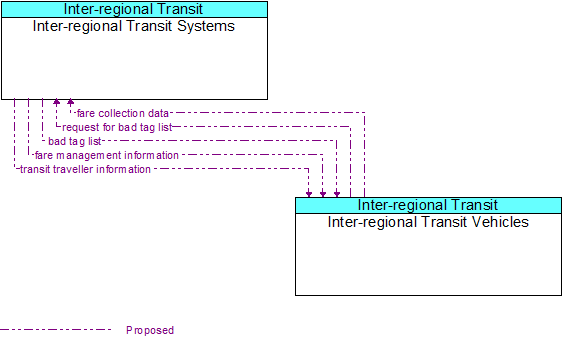

Inter-regional Transit Systems to Inter-regional Transit Vehicles Interface Diagram

Architecture Flow Definitions

bad tag list  (Proposed)  Applicable ITS Standards

List of invalid transit user tags which may have previously failed a fare payment transaction.

fare collection data  (Proposed)  Applicable ITS Standards

Fare collection information including the summary of on-board fare system data and financial payment transaction data.

fare management information  (Proposed)  Applicable ITS Standards

Transit fare information and transaction data used to manage transit fare processing on the transit vehicle.

request for bad tag list  (Proposed)  Applicable ITS Standards

Request for list of bad vehicle tag IDs.

transit traveller information  (Proposed)  Applicable ITS Standards

Transit information prepared to support transit users and other travellers. It contains transit schedules, real-time arrival information, fare schedules, alerts and advisories, and general transit service information.
